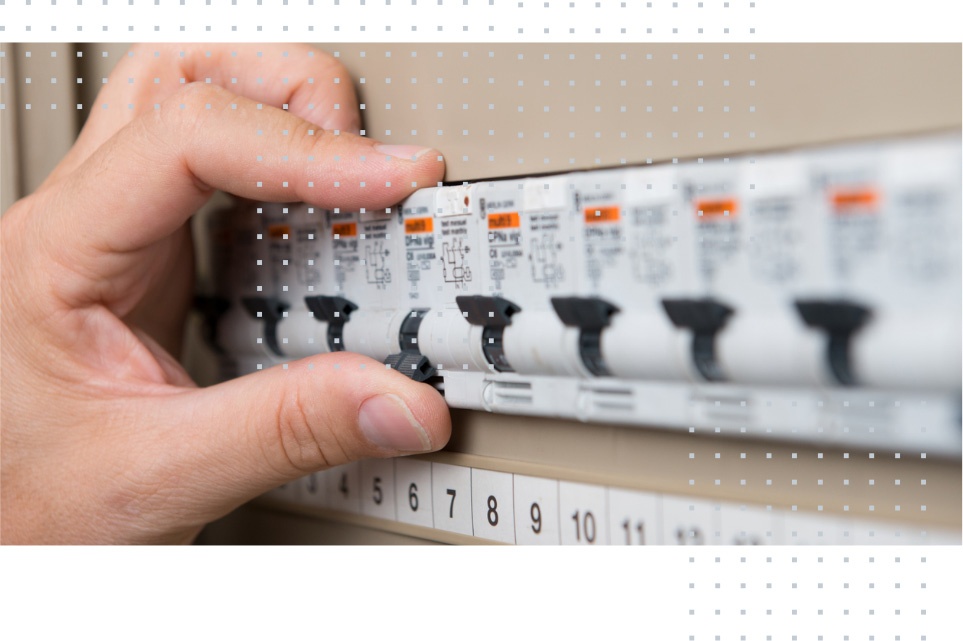

LV switchboards

LV Switchboards

When you need a custom-built or modular type-tested low-voltage (LV) switchboard, SAGE can design and build a solution that is fit for purpose.

A poorly designed and built switchboard can be extremely dangerous.  We take switchboards very seriously and are always looking at the latest designs and devices to enhance the safety of your switchboard.

With over 40 years’ experience in switchboard build, we’re all about the best thinking, which is why we have our design and manufacturing expertise all under one roof. You can be sure that your employees, your assets and your power sources are all fully protected, and that your energy is as efficient as possible, thereby minimising risks and costs.

We specialise in:

  • Main switchboards

  • Modular switchboards

  • Electrical switchgear

  • Control-gear assemblies

  • Distribution boards

  • Motor control centres

  • Protection panels

  • Pump control and mechanical services switchboards

  • Active Harmonic Filtering

  • Automation and control

  • Metalwork

  • Switchboard upgrades

  • Arc flash protection

  • Temperature Monitoring

We can build switchboards for any application, including:

  • Generator set (genset) control systems

  • Renewable energy systems

  • Uninterruptible Power Supply (UPS) systems

  • Mobile equipment DC systems

  • Smart monitoring
  • Temporary power switchboards for construction sites, events, markets, parks and reserves

  • Site upgrades

We can fulfil the following design criteria:

  • Standards
    • AS/NZS3000, AS/NZS61439, AS/NZS1939
  • Separation
    • Forms 1, 2a, 2b, 3a, 3b, 4a, 4b
  • Degree of protection
    •  IP20 to IP56
  • Nominal current
    • From 400A to 3200A
  • Nominal voltage
    • 660V AC, 50-60Hz
  • Test voltage
    • 2.5kV
  • Short circuit level
    • Horizontal Busbars up to 115kA, 253kA peak. Vertical Busbars up to 65kA, 200kA peak
modular-switchboards

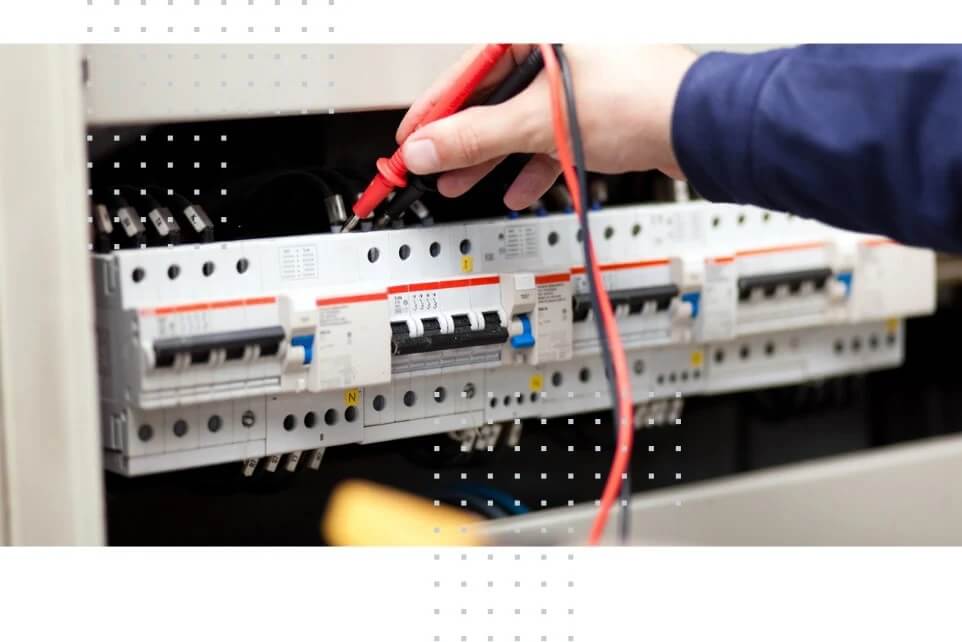

Modular Switchboards

When you need a flexible switchboard solution that can be delivered fast, and guarantees safe and reliable power distribution, then SAGE can deliver a modular system that is right for you.

Based on the concept of assembling custom-made enclosures from standard components, a modular system is highly versatile,  known achieving fast turnaround and enables flexibility to modify design during the manufacture process. It can be adapted to just about any application, a fact proven by its adoption in various industries, including OEMs, mining, infrastructure, production, power plants and more.

A modular design means the system is fast to deliver, quick and easy to assemble, easy to adapt, and easy to expand, able to replace damaged parts easily and thereby extending its life cycle and increasing ROI.

SAGE is proud to be an accredited CUBIC, Tabula and ABB Pro Enclosure system builder. The CUBIC system is suited to high-risk environments in need of fail-safe power. The ABB Pro Enclosure can be built as fixed, plug-in or draw-out solutions.

With over 40 years’ experience in switchboard building, we’ll make sure you get the optimum value out of your modular system

We can fulfill the following design criteria:

  • Standards
    • AS/NZS3000, AS/NZS61439, AS/NZS1939, and Lloyds Register
  • Separation
    • Forms 1, 2a, 2b, 3a, 3b, 4a, 4b
  • Degree of protection
    • IP20 to IP56
  • Nominal current
    • From 400A to 3200A
  • Nominal voltage
    • 660V AC, 50-60Hz
  • Test voltage
    • 2.5kV
  • Short circuit level
    • Horizontal Busbars up to 115kA, 253kA peak. Vertical Busbars up to 65kA, 200kA peak
  • Type test
    • AS/NZS 61439 and IEC61439

More to explore


LV switchboard design and build for Almondco

A greenfield almond processing plant needed help getting core electrical functionality. SAGE manufactured and…


Meet the team behind our LV switchboards manufacture

Last month, Australia’s first ABB pro E Power 5000 amp modular switchboard was assembled in the SAGE Automation...

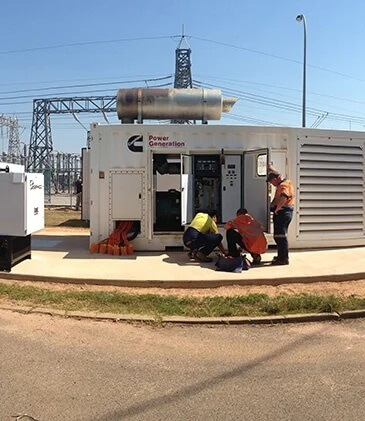

Switchboard upgrades secure power supply for NT
