Darwin's Rydges Resort underwent a major expansion and SAGE manufactured the critical power distribution boards...
Industry

Utilities: Power

Outcome
SAGE delivered the design, manufacture and testing for one main distribution board and six smaller distribution boards that were essential for the Darwin Rydge's Resort expansion.
Capability
Manufacture of main distribution boards and small distribution boards,

low to medium voltage electrical works, FAT testing.

Region

Darwin, Northern Territory Australia

Director Melbourne Airport

"Fusce dapibus, tellus as cursus commodo, tortor mauris condimentum. Duis mollis, est non commodo luctus, nisi erat Fusce dapibus, tellus ac cursu mmodo luctus,nisi erat Fusce dapibus, tellus ac cursu mmodo luctusnisi erat Fusce dapibus. "

Summary

Darwin Rydges Resort underwent a significant expansion which included 108 new rooms and the relocation of 10 existing villas.


Lightning Electrical were contracted to complete the electrical works, including the sub-mains, public and acccomodation's power and lighting supply.


Quality power distribution boards are a critical component of any electrical works of this scale. As such, SAGE Automation was engaged to design, manufacture and test the main distribution board and six smaller distribution boards.


As with any electrical and power supply works, these products were delivered with a high degree of precision, safety and compliance.

Products

  • Main distribution board x 1
  • Distribution boards x6

Main distribution board specifications

Product: 1 x main distribution board
Enclosure: Modular enclosure system: Monarch IP series
Segregation: Form 1
Protection: IP56
Ratings: 400AMP
Cabling: 2 x 1 240mm2 copper X LPE/PVC plus earth
ACS busbar: Proprietary 3 phase chassis
Dimensions: 800mm x 1876mm x 400mm
Mounting: Floor mounted
Safety features: Key lock door, multiple internal escutcheons
Build hours: 170 hours

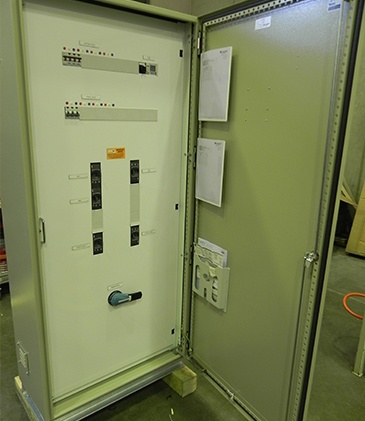

Low voltage switchboard manufacture facility

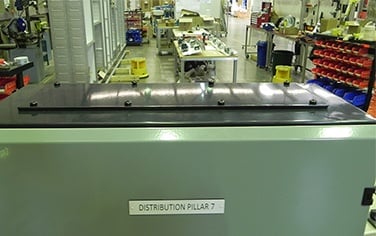

Distribution board in SAGE’s Manufacture Facility.

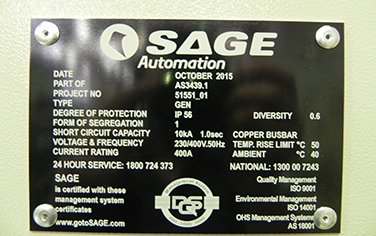

SAGE mains distribution board rating plate.
distribution board manufacture

SAGE manufacture capability

SAGE has a multimillion dollar industrial power and control panel manufacturing facility. There it custom designs and builds electrical panels and power switchboards for industrial control and automation systems.

SAGE carries out detailed Factory Acceptance Testing standards as part of the internal quality process prior to shipping and installation. This both confirms functional operation before onsite installation and minimises commissioning and testing time. It also provides an excellent opportunity for clients to assess system functionality and obtain detailed test documentation.
