SAGE Automation manufactured the main switchboard, tenancy services boards and distribution boards for the shopping centre...
Industry
Infrastructure: Shopping Centres
Outcome

SAGE manufactured the main switchboard x 1, tenancy services boards x 20, distribution boards x 12 that supply and regulate electricity to a major shopping complex.

Capability

Manufacture of: main switchboard, tenancy services boards, distribution boards, low to medium voltage electrical works, FAT testing, installation

Region

Darwin, Northern Territory, Australia

Director Melbourne Airport

"Fusce dapibus, tellus as cursus commodo, tortor mauris condimentum. Duis mollis, est non commodo luctus, nisi erat Fusce dapibus, tellus ac cursu mmodo luctus,nisi erat Fusce dapibus, tellus ac cursu mmodo luctusnisi erat Fusce dapibus. "

Challenge

A major expansion to a Darwin shopping centre demanded new power supply.

Solution

The key contractor for electrical works contracted SAGE Automation to manufacture the the low voltage switchboards that would supply and control electricity to thenew wing of the shopping centre. Drawing on previous experience in power distribution board and low voltage (LV) switchboard manufacture, SAGE Automation built the main switchboard, tenancy services boards and distribution boards.

Outcome

These essential electrical components now supply power to the new retail shops within the shopping centre. As with any electrical and power supply works, these products were delivered with a high degree of precision, safety and compliance.

SAGE designed and manufactured the following:

  • 1 SAGE cubic modular switchboard with back to back design
  • 20 tenancy services boards. Built using proprietary panel boards complete with automatic transfer switches
  • 12 power distribution boards that supply each retail outlet

Distribution board specifications:

Product/s: 12 distribution panels
Enclosure: Painted mild steel custom panels
Segregation: 1
Protection: IP42
Ratings: 1 x 250A, 11 x 160A
ACS busbar: Proprietary encapsulated 3 phase chassis
Dimensions: 1200mm x 600mm
Mounting: Wall mounted
Safety features: Key lockable, internal escutcheon
Build hours: 1,080 hours
Other features: Auto transfer switches, exit emergency lighting test circuits, security lighting circuits

distribution board manufacture

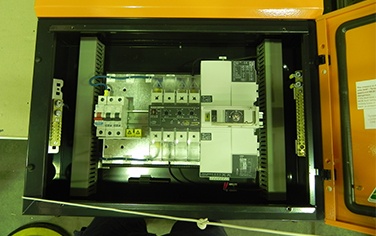

Automatic transfer switch in distribution board.

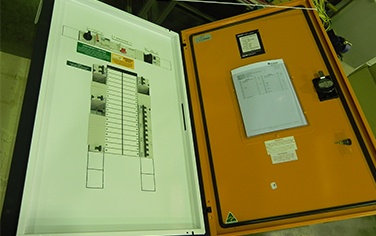

A completed distribution board with door open.

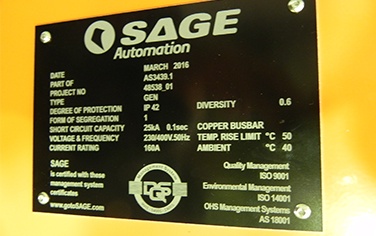

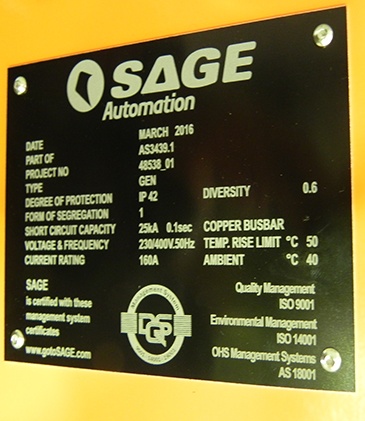

SAGE  distribution board rating plate.
distribution board manufacture

SAGE manufacture capability

SAGE has a multimillion dollar industrial power and control panel manufacturing facility. There it custom designs and builds electrical panels and power switchboards for industrial control and automation systems.

SAGE carries out detailed Factory Acceptance Testing standards as part of the internal quality process prior to shipping and installation. This both confirms functional operation before onsite installation and minimises commissioning and testing time. It also provides an excellent opportunity for clients to assess system functionality and obtain detailed test documentation.
