We designed and manufactured critical components for operations at Port Thevenard Shipping...
Industry
Infrastructure: Ports
Outcome

SAGE Automation designed and manufactured custom industrial control panels and MCCs critical for operations at Port Thevenard Heavy HMC Storage and Shipping Facility.

Capability
Industrial control panel and motor control centres (MCC) manufacture and design
Region

Port Thevenard, South Australia, Australia

Director Melbourne Airport

"Fusce dapibus, tellus as cursus commodo, tortor mauris condimentum. Duis mollis, est non commodo luctus, nisi erat Fusce dapibus, tellus ac cursu mmodo luctus,nisi erat Fusce dapibus, tellus ac cursu mmodo luctusnisi erat Fusce dapibus. "

Project

The Port Thevenard Heavy Mineral Concentrate (HMC) Storage and Shipping Facility is located near Ceduna in South Australia. The facility includes storage of up to 50,000 tonnes of HMC and loading facilities from the Jacinth and Ambrosia mineral sanddeposits.

This scope included the supply of both the Stockpile and Conveyor Low Voltage motor control centres (MCCs) with installation, programming, testing and commissioning of a PLC based control system in accordance with contract drawings and specifications.

MCC and panel specifications

SAGE Automation designed and manufactured custom industrial control panels and MCCs for the Port Thevenard Heavy HMC Storage and Shipping Facility.

MCCs:

  • 2 x certified Form 4b fabricated switchboards, 800A approx. 7M long

New control panels:

  • 4x local control station (LCS)
  • 1x variable frequency drive (VFD)
  • 1x human machine interface (HMI)
  • 2x junction boxes (JBox)

The following hardware was installed in existing panels:

  • 3x 90kW soft starters
  • 2x active filters
  • 1x 75kW VFD with chokes

Outcome

Unique project outcomes were obtained through partnership with Broadspectrum. SAGE successfully completed all work within a tight timeframe to meet scheduled ship loading deadlines.

This involved overcoming unforseen site issues and developing innovative solutions as the project matured. SAGE delivered certainty for Broadspectrum and Iluka with an exceptional product that exceeded the customer’s expectations.

Key deliverables:

  • Working in remote location
  • Project Management including estimation, cost planning, procurement and stakeholder management
  • CAD Drafting, low voltage electrical design and PLC system design
  • Factory and Site Acceptance Testing
  • Provision of final, as built documentation and user manuals
  • On site commissioning
  • MCC and control panel manufacture

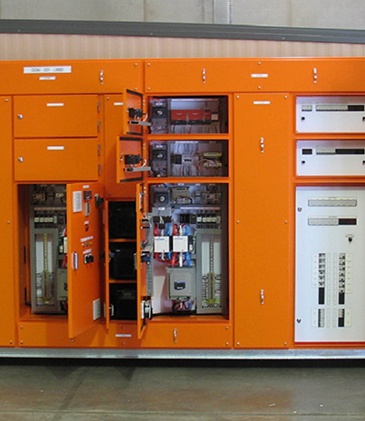

MCC manufacture by SAGE

SAGE Manufacturing

SAGE’s control panels are built with quality, precision and meet the highest level of Australian safety and compliance standards. The manufacture of control panels and MCC for this project ensured smooth installation and commissioning with minimal disruption to the project schedule or business operations.

SAGE Automation has Manufacture capacity in: Control Panels, Distribution Boards, Instrumentation, LV and Modular Switchboards, Motor Control Centres, OEM Manufacturing and Protection, Control and Telecoms.
