SAGE developed a dynamic school zone sign for the City of Charles Sturt, which provides a response based on vehicle speed, pedestrian presence and time of day.


Transport | Smart Cities


SAGE developed a dynamic school zone sign for the City of Charles Sturt, that responds based on vehicle speed, pedestrian presence and time of day.


SAGE Edge, Solar power, RADAR Speed Detection, Ultrasonic Pedestrian Detection, LoRaWAN, Dynamically Controlled Variable Message Signage, SAGE Smart Cities Dashboard.


Adelaide, South Australia, Australia

Director Melbourne Airport

"Fusce dapibus, tellus as cursus commodo, tortor mauris condimentum. Duis mollis, est non commodo luctus, nisi erat Fusce dapibus, tellus ac cursu mmodo luctus,nisi erat Fusce dapibus, tellus ac cursu mmodo luctusnisi erat Fusce dapibus. "


School zones in South Australia are unique in that a 25km/h speed limit applies when children are present, placing the onus on drivers to identify pedestrians which can often result in low levels of speed limit compliance. Safety can be improved by providing direction and prompting drivers to reduce their speed.

SAGE considered the following to be the main issues:

  • Drivers not adhering to the 25km/h School Zone
  • Lack of safe road crossing opportunities
  • Lack of awareness of presence of a school
  • Traffic congestion
  • Driver behaviour near schools.


  • Increase speed awareness for motorists
  • Vehicle monitoring
  • Pedestrian detection bollards
  • Detect pedestrians and communicate detections back to the display signage.

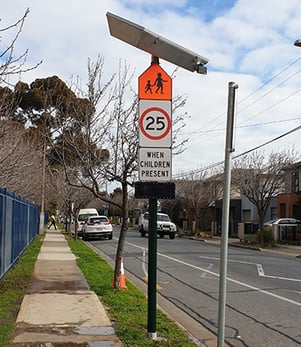

SAGE Automation designed, built and installed radars to standard school zone signage to detect vehicles approaching the school zone and their speed. A number of ultrasonic pedestrian detection bollards are also used to detect the presence of pedestrians within the school zone.

When pedestrians are detected within the school zone and an approaching vehicle is detected, a variable message sign located below the existing school zone signage will display a message to the approaching driver.


  • Customised messages displayed when children are present, based on vehicle speed
  • Twin radars monitor vehicle counts and speeds
  • Retrieved data is logged to smart city API
  • Solar-powered wireless LoRaWAN solution
  • Cost-effective and easy to install solution
  • Easily expanded to cover large pedestrian zones.


Want to know more about SAGE's capability for Smart Cities? Find out more here.




  • SAGE Edge Smart Device
  • SAGE Smart Cities Dashboard service
  • LoRaWAN Network
  • Doppler radar
  • Self-sufficient solar solution
  • Ultrasonic pedestrian detection
  • Dynamically controlled variable messaging.
