ABB Microgrids design and build offgrid and grid-connected microgrids, specialising in a
range of enabling technologies such as conventional and renewable power generation, automation, grid stabilization, grid connection, and energy storage.
Capability

SAGE has a multimillion dollar industrial power and control panel manufacturing facility, to support custom design and build of electrical panels and power switchboards for industrial control and automation systems. SAGE carries out detailed Factory Acceptance Testing  standards as part of the internal quality process prior to shipping and installation. This both confirms functional operation before onsite installation and minimises commissioning and testing time. It also provides an excellent opportunity for clients to assess system functionality and obtain detailed test documentation.

Region

Berrimah, Northern Territory, Australia

Director Melbourne Airport

"Fusce dapibus, tellus as cursus commodo, tortor mauris condimentum. Duis mollis, est non commodo luctus, nisi erat Fusce dapibus, tellus ac cursu mmodo luctus,nisi erat Fusce dapibus, tellus ac cursu mmodo luctusnisi erat Fusce dapibus. "

Challenge

ABB Microgrids’ High Power Test Facility is able to test multiple PowerStore configurations such as Containerised PowerStore-Battery and Skid-mounted Powerstore  Battery.

The most recent test involving a PowerStore Battery and Flywheel required appropriate mains equipment to handle 3MVA ratings in addition to 150% overload for 30 seconds. This 3MVA rating was aligned to PCS100 – the maximum rating that can be assembled in a single system.

Solution

SAGE Automation designed, manufactured and tested a High Power Test Main Distribution Board (MBD) according to these strict requirements. The 5000A MDB can be used to interconnect with the PowerStore ESS/Flywheel, diesel generator and load bank, as well as perform the  owerstore Power Test. It can be installed in existing or newly set up control rooms.

This enabled ABB Microgrids to perform their testing of  new configurations with guaranteed reliability and safety.

Outcome

Product

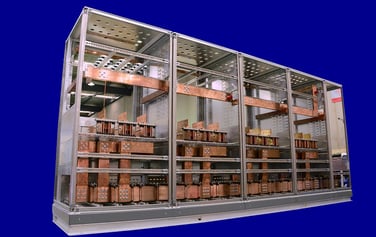

1 x 5000A Main Distribution Board

Enclosure

SAGE Automation – ABB Pro E Type Tested Modular Switchboard System Form 1

Segregation

Form 4B

Protection

IP41

Ratings

400V 50Hz 5000A 100kA 1.0Sec

Main busbar

3// 160 x 10 Copper per phase

Dimensions

2213mm High x 5122mm Wide x 1047mm Deep

Build time

470 hours
